#11
Fastener Tightening Specifications
all in Nm!!!!
Brace for Intake Manifold 20Nm
Camshaft Position Sensor Housing 10Nm
Camshaft Sprocket 65Nm
Coolant Flange with the Coolant Temperature Sensor 10Nm
Crankshaft Toothed Belt Sprocket1 90 + 90°
Cylinder Head Cover, Nut 10Nm
Exhaust Camshaft Bearing Cover 10nM
Fuel Rail 10Nm
Hydraulic Chain Tensioner 10Nm
Idler Roller 25Nm
Ignition Coil 10Nm
Intake Camshaft Seal 25Nm
Intake Manifold, Nut and Bolt 10Nm
Intermediate Shaft Sprocket 65Nm
Lever 40Nm
Lower Toothed Belt Guard, Nut and Bolts2
10Nm
20Nm
Rear Toothed Belt Guard 20Nm
Secondary Air Pump Pipe to Cylinder Head Cover 10Nm
Secondary Air Injection Pipe to Secondary Air Injection Combination Valve 10Nm
Tensioning Device for Toothed Belt 10Nm
Tensioning Roller3
Nut 10NM
Bolt 25Nm
Tensioning Roller4 10Nm
Upper Coolant Pipe 10NM
Cylinder Head, Tightening Specifications and Sequence
– Tighten cylinder head in sequence indicated, in 3 stages as follows:
1. Tighten to 60 Nm
2. Tighten an additional 90°.
3. Tighten an additional 90°.
and thats all i know...
all in Nm!!!!
Brace for Intake Manifold 20Nm
Camshaft Position Sensor Housing 10Nm
Camshaft Sprocket 65Nm
Coolant Flange with the Coolant Temperature Sensor 10Nm
Crankshaft Toothed Belt Sprocket1 90 + 90°
Cylinder Head Cover, Nut 10Nm
Exhaust Camshaft Bearing Cover 10nM
Fuel Rail 10Nm
Hydraulic Chain Tensioner 10Nm
Idler Roller 25Nm
Ignition Coil 10Nm
Intake Camshaft Seal 25Nm
Intake Manifold, Nut and Bolt 10Nm
Intermediate Shaft Sprocket 65Nm
Lever 40Nm
Lower Toothed Belt Guard, Nut and Bolts2
10Nm
20Nm
Rear Toothed Belt Guard 20Nm
Secondary Air Pump Pipe to Cylinder Head Cover 10Nm
Secondary Air Injection Pipe to Secondary Air Injection Combination Valve 10Nm
Tensioning Device for Toothed Belt 10Nm
Tensioning Roller3
Nut 10NM
Bolt 25Nm
Tensioning Roller4 10Nm
Upper Coolant Pipe 10NM
Cylinder Head, Tightening Specifications and Sequence
– Tighten cylinder head in sequence indicated, in 3 stages as follows:
1. Tighten to 60 Nm
2. Tighten an additional 90°.
3. Tighten an additional 90°.
and thats all i know...
#12
Excellent info, guys, except for you, Chris. I guess you live by the mantra: German Car, German Specs: "Guttentite"
Thanks for the specs, SickB5. Hey, did you have a DIY or a manual for when you did yours?
Thanks for the specs, SickB5. Hey, did you have a DIY or a manual for when you did yours?
Last edited by bradtyler02; 12-03-2010 at 09:06 PM.
#14
Torque specs for head
1/2 in drive + breaker bar
crank that bitch down in a counter clockwise fashion without breaker*
Go back and make a half turn with 3 ft breaker
*I take no responsibility for the n00b that does use this
1/2 in drive + breaker bar
crank that bitch down in a counter clockwise fashion without breaker*
Go back and make a half turn with 3 ft breaker
*I take no responsibility for the n00b that does use this
#16
eeerrrrrr???... aaahhhh? so how do i take the bumper off?
DV?!?! WTF ?1?. IS THAT??
then 6 hous later i had my car in service postion ( front bumper off and core suppot off) and myintake manifold off and the exahaust manifold.
just start at the top haha.
remove negative battery terminal.
remove engine cover.
remove coil packs.
remove spark plugs
so further. its not too bad, i went intonot knowing anything!.
and came out with a new built head and a smooth running car=]=]
#18
Brad, don't waste your time taking off either manifold, the coilpacks, or the sparkplugs. That's all unnecessary.
#20
i had no clue what i was doing and no clue what i was getting into. also i took out the plugs and coil packs cause i also replaced those with new coils packs from an s4 and new ngk plugs.
and i took off both manifolds also because i was replacing the gaskets.
ALSO because i cleaned the entire head all 20 valves replaced, valve guides replaced.

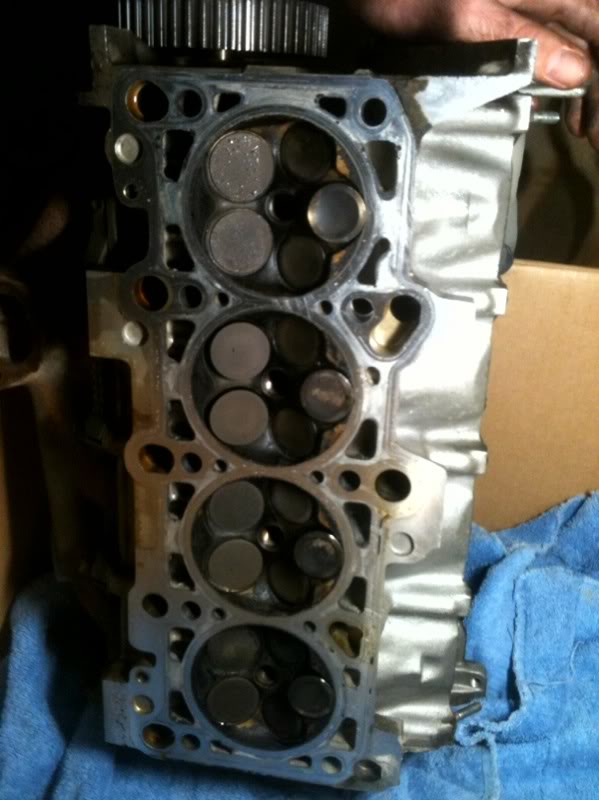

here is wheni first pulled my head 12 valves bent all 8 exhaust and 4 intake

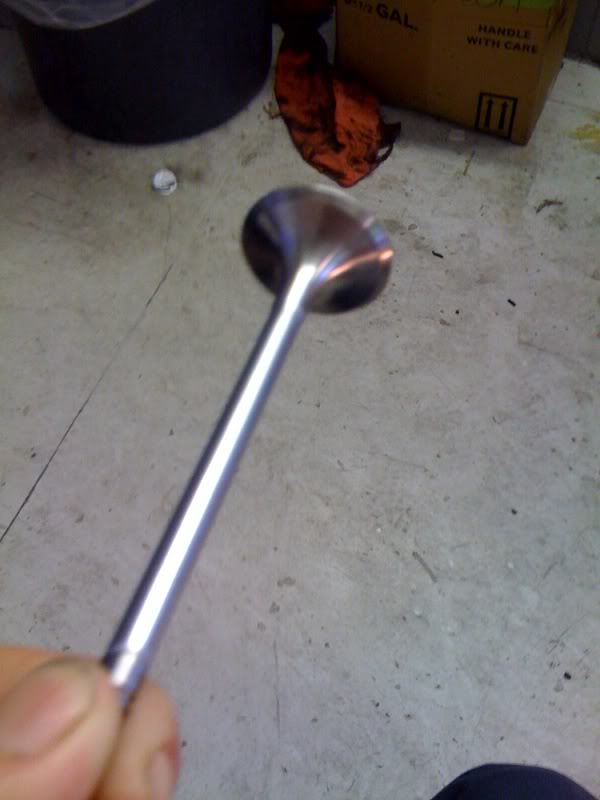

and this is what a $73.89 sodium filled exhaust valve looks like (i bought 8)

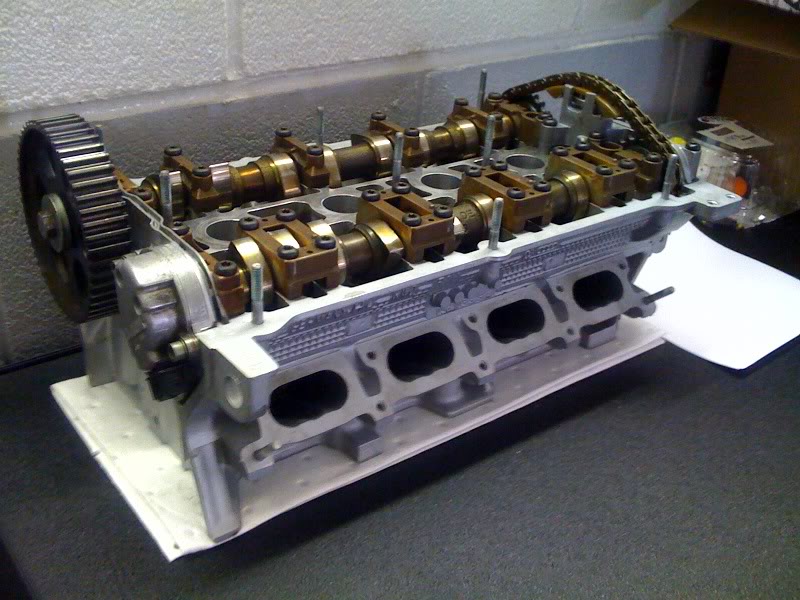

and this is when i was done and had all my new lifter and cams new chain and adjuster all new seals, gaskets and CLEANED up.
so maybe if i did it again now that i know what im doing i could probably have it done in 12th of the time it took me the first time.
